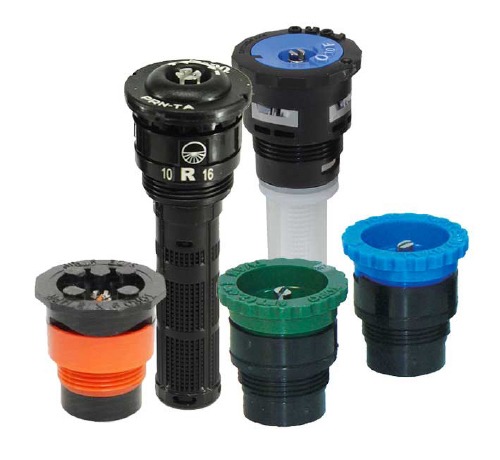

Any well-designed irrigation system needs nozzles. Made Toro tough and available in a range of sizes, radii and arcs, each nozzle is engineered to get the right amount of water to the right areas.
Features

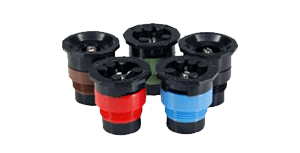

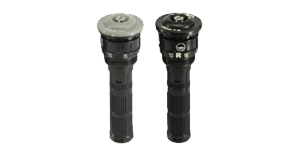

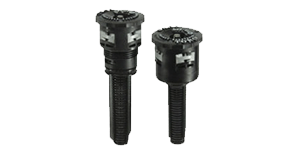

| PRECISION ROTATING NOZZLE (PRN) | PRECISION SPRAY NOZZLE (PSN) | TORO VARIABLE ARC NOZZLE (TVAN) | SPECIALTY ARC (MPR) | |
|---|---|---|---|---|
 |  |  |  | |

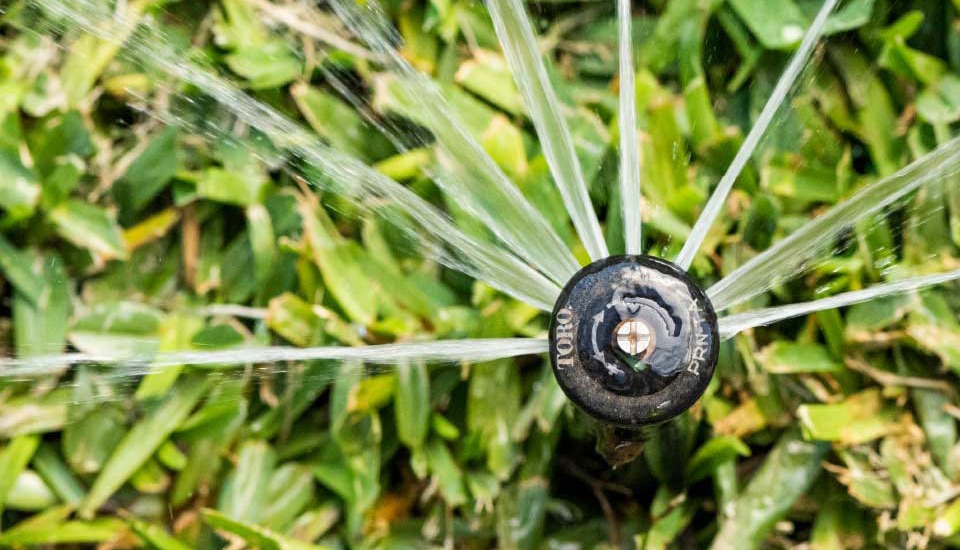

| Spray pattern | Rotating Fingers spray, large droplets | Even single oscillating spray | Even single spray | Flat single spray |
| Type | Fixed & variable | Fixed | Variable | Fixed |
| Radius | 4.3 – 7.9m (14” – 26”) | 1.2 – 4.7m (4” – 15”) | 2.2 – 5.5m (8” – 17”) | 0.6 – 4.5 m (2” – 15”) |
| Arcs | 45˚ to 270˚, 360˚ | 45˚, 180˚, 360˚ | 0˚ – 360˚ | Specialty – centre, side, end |
| Flow range | 0.64 – 13.93 lpm | 0.23 – 10.14 lpm | 1.3 – 17 lpm | 0.3 – 4.5 lpm |
| Recommended operating pressure | 280 – 350 kpa (40 – 50 psi) | 280 kpa (40 psi) | 200 kpa (30 psi) | 200 kpa (30 psi) |
| Colours | Black (fixed) & Grey (full) | Black (15”) | Green (8”), Blue (10”), Brown (12”), Black (15”), Grey (17”) | Orange |
| PRN | PSN | TVAN | ||
|---|---|---|---|---|
 |  |  | ||
| FLOW RATE (LITRES PER MINUTE) | ||||
| 250kPa | 4.2 lpm | – | 8.0 lpm | |
| 300kPa | 5.0 lpm | 4.3 lpm | 8.8 lpm | |
| 350kPa | 5.6 lpm | 4.5 lpm | 9.4 lpm | |
| 400kPa | 6.0 lpm | 4.8 lpm | – | |
| 450kPa | 6.4 lpm | – | – | |
| RADIUS* | ||||
| 250kPa | 5.9 metres | – | 4.6 metres | |
| 300kPa | 6.5 metres | 4.4 metres | 4.6 metres | |
| 350kPa | 6.9 metres | 4.4 metres | 4.6 metres | |
| 400kPa | 7.2 metres | 4.3 metres | – | |
| 450kPa | 7.6 metres | – | – | |
| The radius is the distance the sprinkler throws the water | ||||
