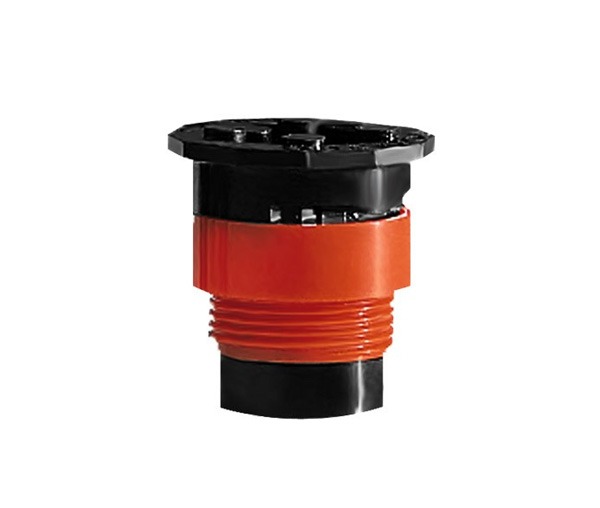

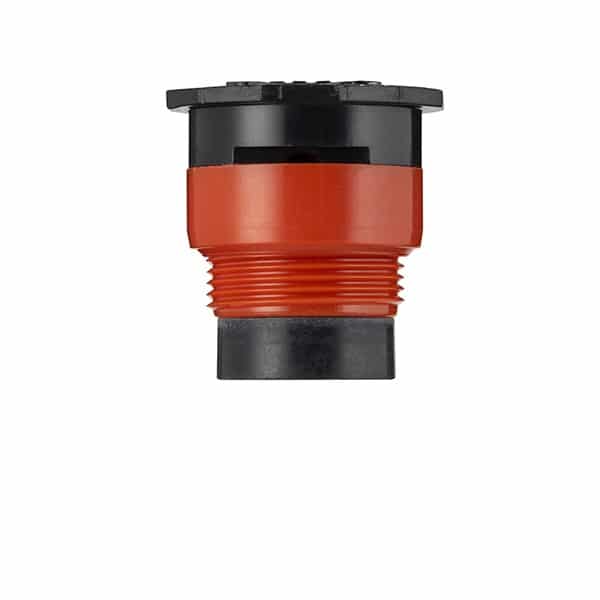

MPR Specialty Arc Nozzles
Toro 570 MPR Plus specialty arc spray Nozzles feature true matched precipitation enable you to irrigate those tricky garden areas such as narrow driveway lawns or garden bed strips.. They fit any 570 pop-up body, shrub adaptor, riser extender or shrub riser.
The Toro difference
Reach every corner
MPR nozzles are great for tricky shapes and narrow spaces with side, end and centre strips available.
Low flow rate
Low flow rate allows for more sprinklers to be used in the same zone. Plus with matched precipitation rate, all nozzles apply water with approximately the same rate.
Fits any 570 pop-up body
Pair with any sprinkler body in the 570 range to create the perfect irrigation system for your garden or lawn area.
- Special patterns for tricky to irrigate areas
- Matched precipitation rates ensure all nozzles (every radius and pattern) apply water at the same rate
- Low-flow rates allow for more sprinklers to be placed on the same zone
- PCDs eliminate fogging, conserve water and provide precise flow rates; available pre-installed or separate
- Uniform watering patterns eliminate over and under throw
- 1.25m x 5.5m side strip ideal for parking lot medians
- 0.6m x 1.8m for small planter beds and other narrow areas
- Orange base identifies nozzle as ‘specialty arc’
- Convenient nozzle packaging – nozzles and screens packed separately in attached bags
- Fine-mesh filter screens prevent clogging of lower volume nozzles
- Adjustment screw allows up to 25% reduction in radius and complete shut-off
| Flow rate | 0.34-4.5Lpm |
| Operating pressure for optimum nozzle performance | 200kPa |
| Recommended operating pressure range | 140-350kPa |
| Maximum operating pressure | 520kPa |
